CROP TYPE
Maize Sunflower Beans etc.
NUMBER OF ROWS
1 to 18 rows
faites glisser pour faire tourner le semoir

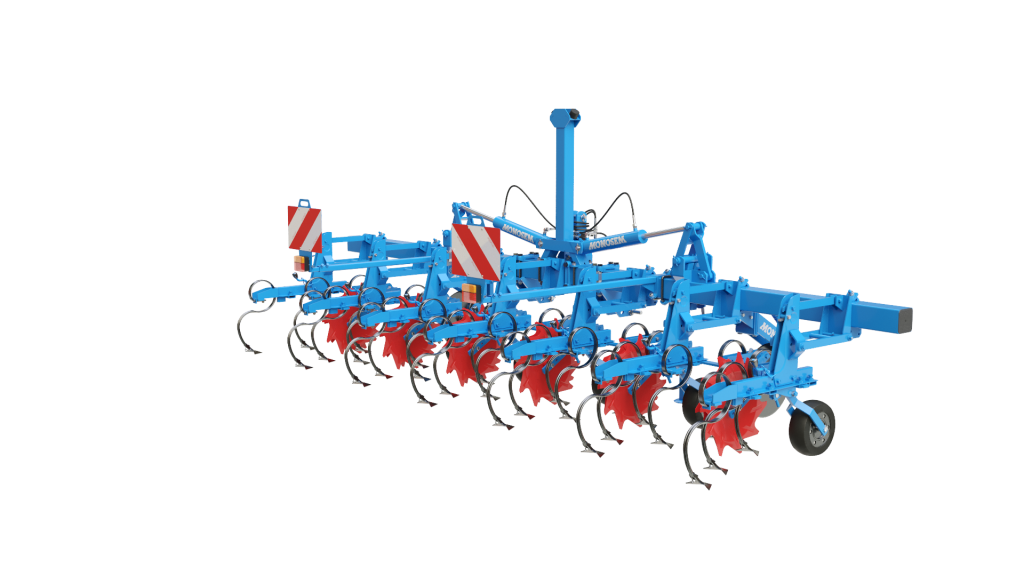

A multitasking cultivator unit.
The Supercrop cultivator will expand your operating scope with its numerous configurations and wide range of accessories. With all these options available, you can build your cultivator to meet your requirements.
- Inter-row cultivation eliminating weeds and aerating the soil to a greater or lesser extent depending on the tool used
- Crop rows protected by plant protection discs limiting mud spatter on crops and preventing them from being buried during early cultivation
- On-row cultivation to bury or uproot weeds including those closest to the crops

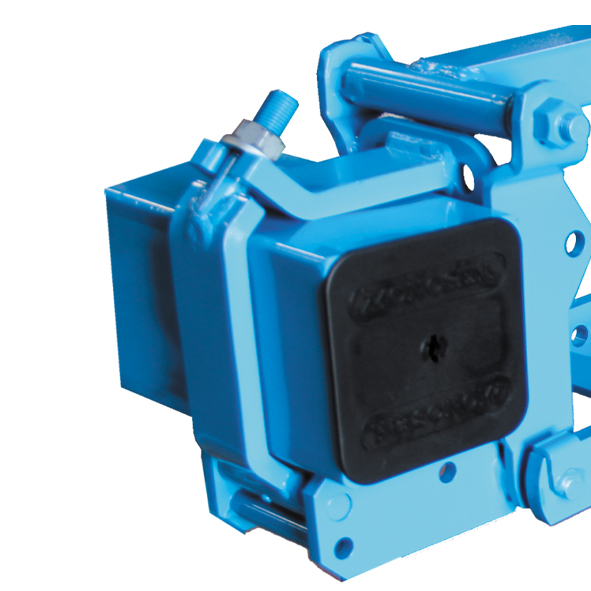

FIXING CLAMP
Units are fixed by tilting clamps with just one nut, which means that the units can be easily moved.
The wide span ensures perfect positioning of the unit when working.

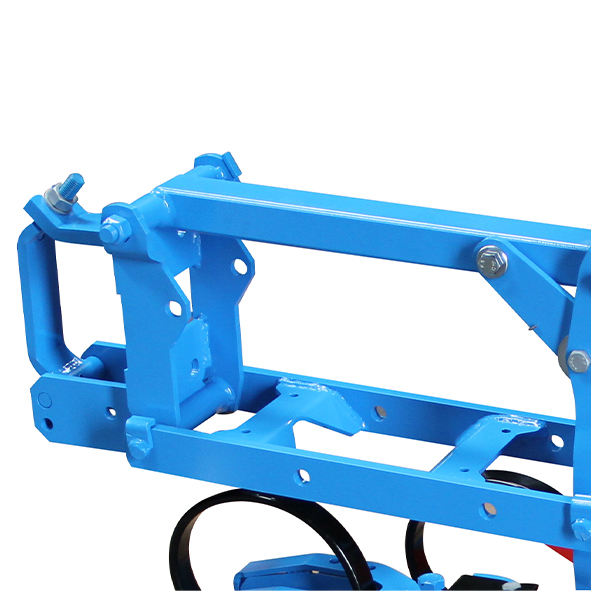

PARALLEL LINKAGE
High-clearance parallel linkages are equipped with a grease fitting. All articulations are mounted on replaceable bushes. Individual lock catches are used to keep units in their raised position.

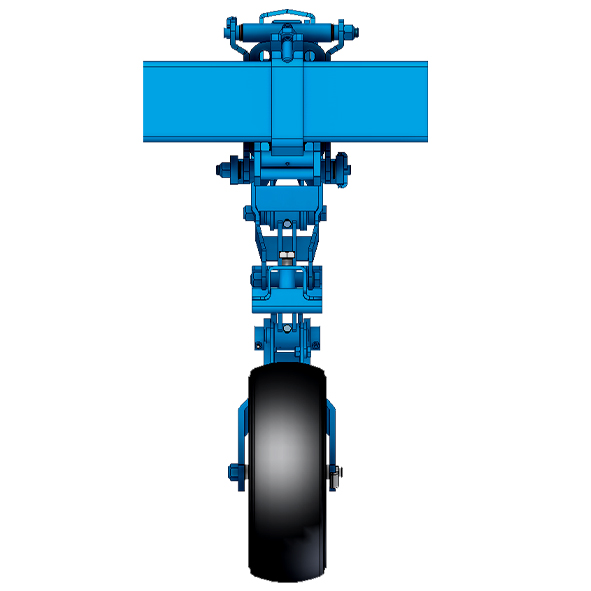

DEPTH CONTROL WHEEL
The depth control wheel (300 x 100) is fitted with a self-cleaning flexible tire. It is fixed on either side by a fork, making it very sturdy.

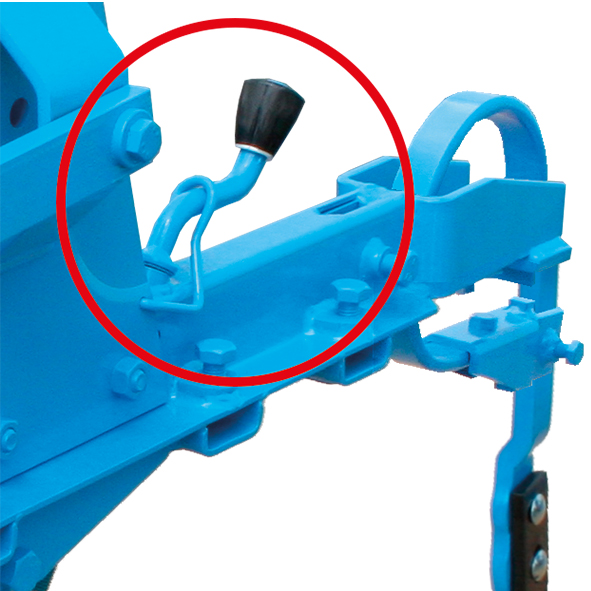

CRANK
A crank is used to adjust working depth. Working depth can be adjusted quickly and easily using this adjustment system and the depth control scale.

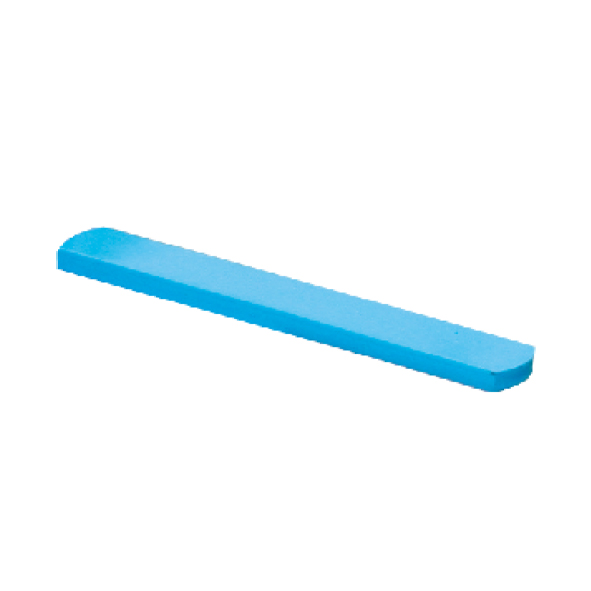

SPECIAL STEEL UNIT CROSS PART (AVAILABLE IN DIFFERENT LENGTHS)

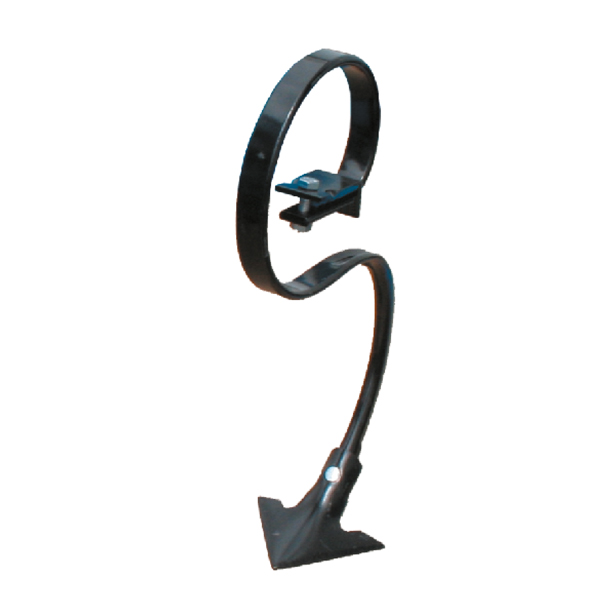

SPRING TINE WITH 150 SWEEP SHARE (ALSO AVAILABLE WITH 105 SWEEP SHARE)

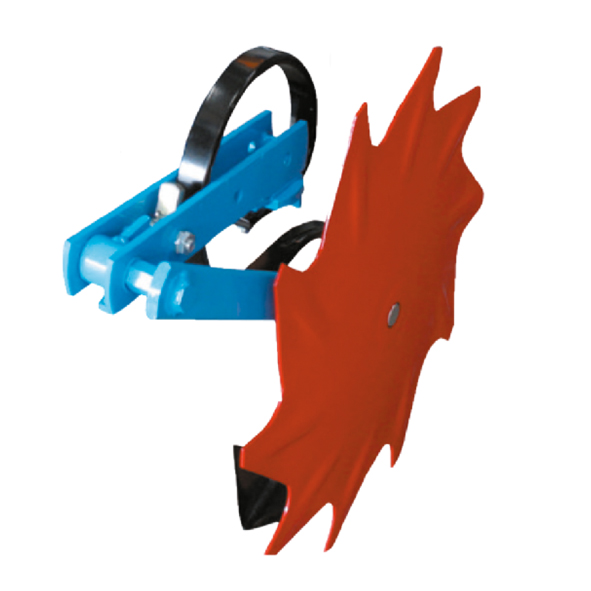

SPRING TINE WITH 150 SWEEP SHARE AND RETRACTABLE PLANT PROTECTION DISC

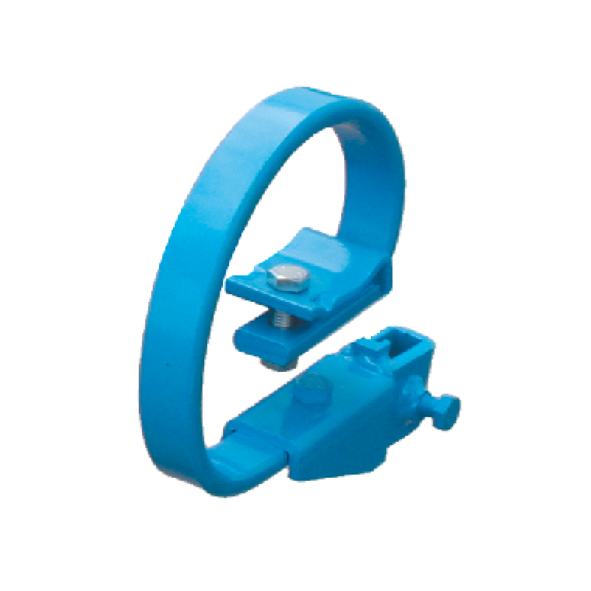

SPRING BRACKET FOR SHOVEL OR BLADE
SHOVEL (AVAILABLE IN WIDTHS OF 14, 20, 25 AND 30)

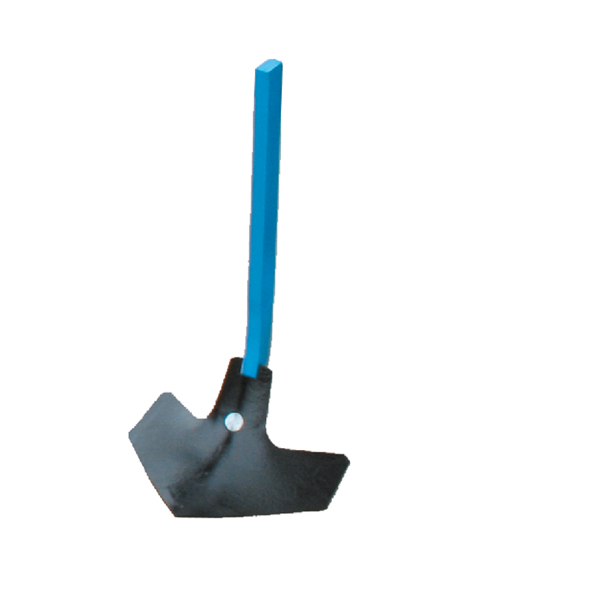

DUCKFOOT (AVAILABLE IN WIDTHS OF 20, 25 AND 30)

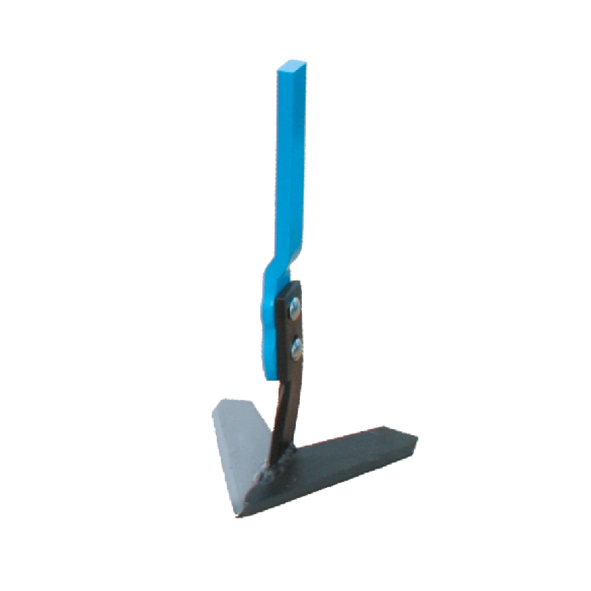

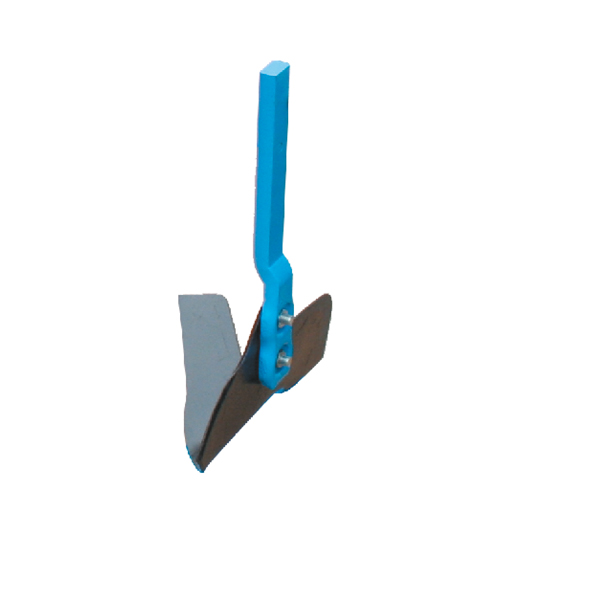

LELIÈVRE BLADE FOR MAIZE OR SUGARBEET

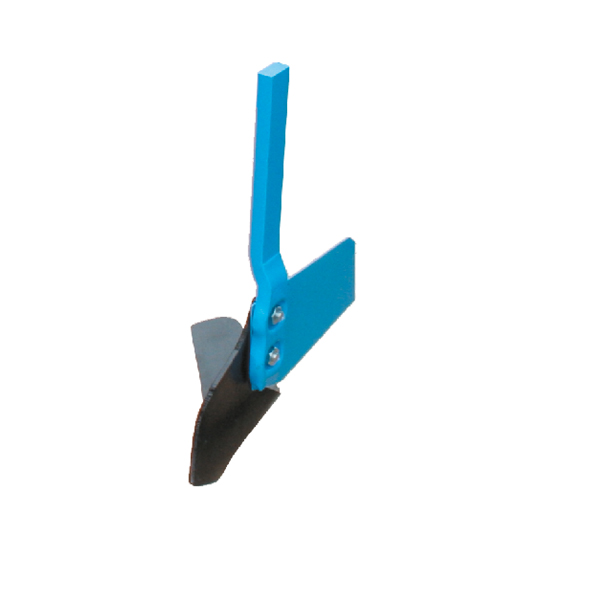

PLANET BLADE WITH OR WITHOUT CHEEK
RIGID SHANK

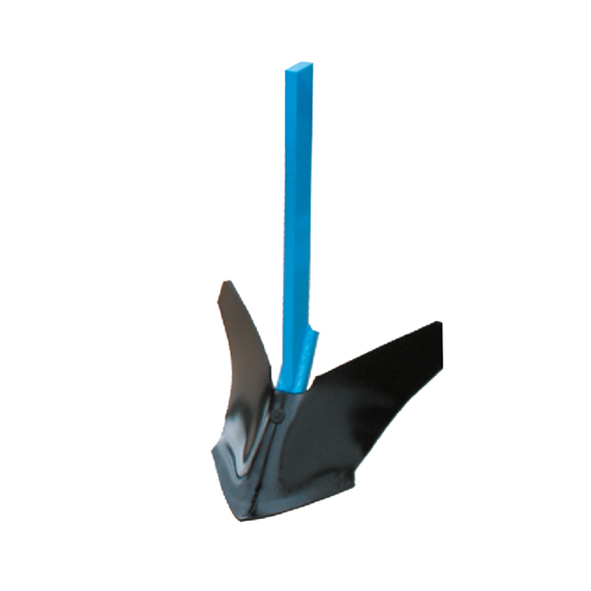

BEDDER (FIXED OR ADJUSTABLE)
Units are fixed by tilting clamps with just one nut, which means that the units can be easily moved.
The wide span ensures perfect positioning of the unit when working.
High-clearance parallel linkages are equipped with a grease fitting. All articulations are mounted on replaceable bushes. Individual lock catches are used to keep units in their raised position.
The depth control wheel (300 x 100) is fitted with a self-cleaning flexible tire. It is fixed on either side by a fork, making it very sturdy.
A crank is used to adjust working depth. Working depth can be adjusted quickly and easily using this adjustment system and the depth control scale.
benefits of cultivation
Monosem cultivators offer a highly effective means of optimizing your yield. They are designed to promote the development of your crops.
Below are 3 benefits of using a Monosem cultivator:
- Weed control, eliminating even the most resilient weeds
- Tillage effects (fertilizer mineralization, soil restructuring and warming)
- Improved biological activity of soil
- Pest control (slugs, etc.)
- Elimination of ground caking
- Fewer runs and less fertilizer (if applied locally during cultivation)
- A versatile cultivator that can be used on a wide variety of crops
- Less water required (1 cultivation is worth 2 irrigations)
- Lower quantities of plant protection products required
- Lower quantities of fertilizer required due to localized fertilizing
- Less water erosion
guidance systems
We have the ideal guidance system for you based on your needs in terms of speed, precision and area requiring weed control.

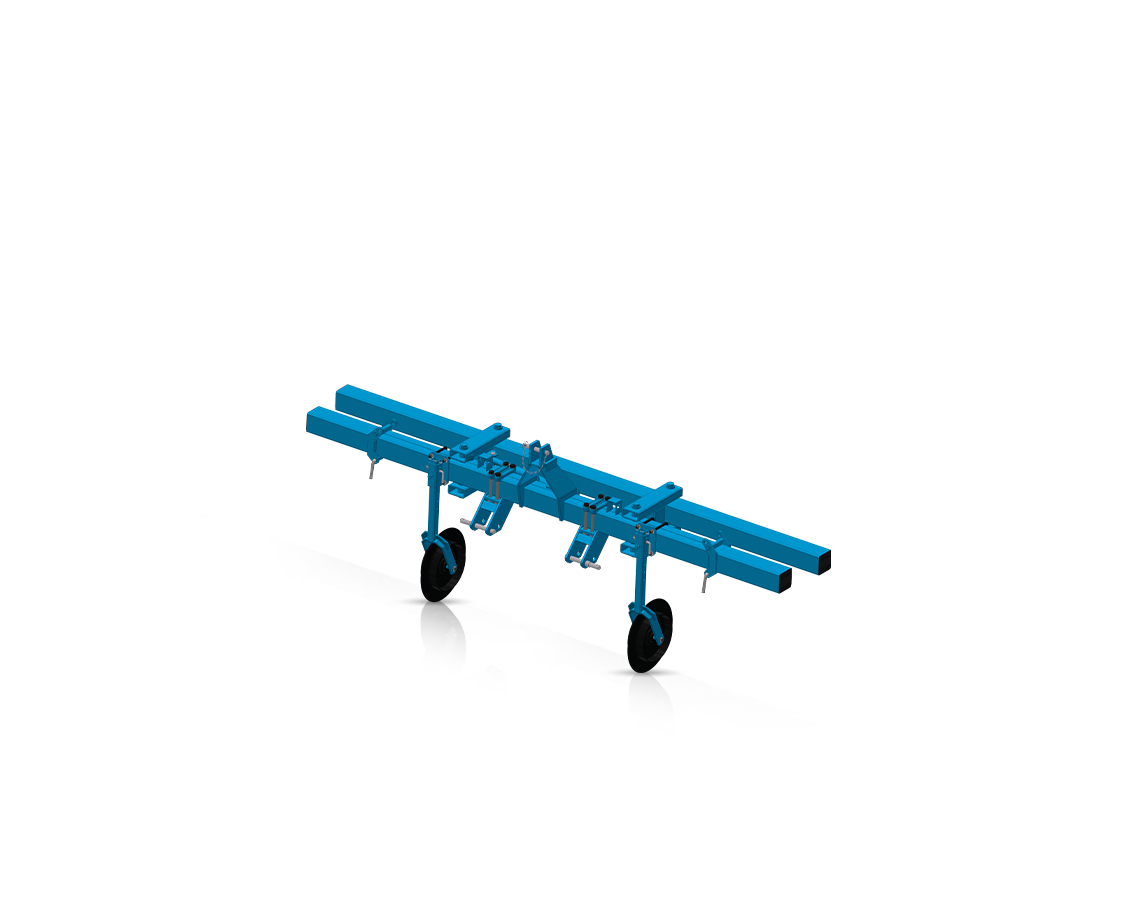

Automatic guidance
Cultivator units with automatic guidance by tracing disc, camera or feeler rods allow you to cultivate very closely to crops, increase your productivity, and benefit from their enhanced ease of use. The camera mounted on the cultivator can distinguish between crops and soil, hydraulically adjusting the cultivator units' line of travel for increased precision.

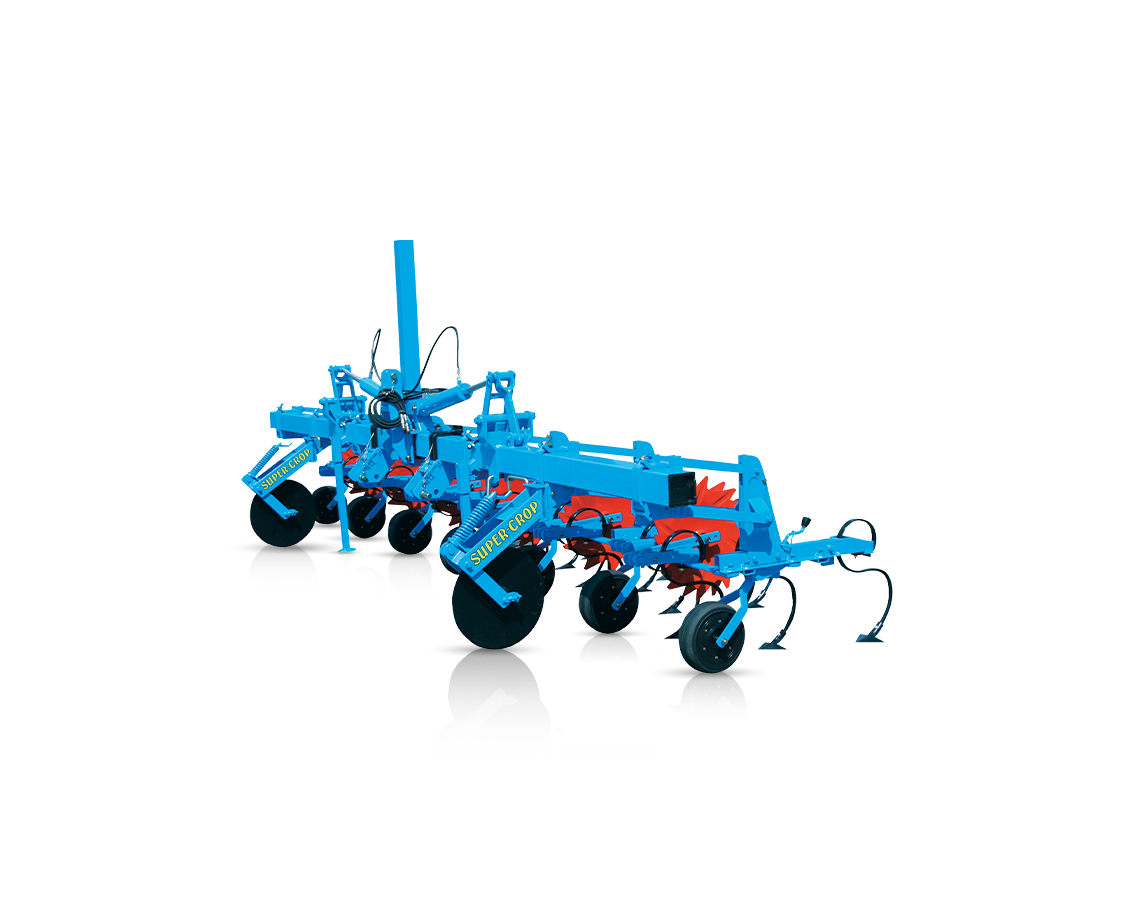

Self-guiding cultivator
Self-guiding cultivators are guided by disc coulters. These circular coulters allow the cultivator to follow the tractor perfectly in all cultivating conditions. This simple and economical system is ideal for crops with high inter-row spacing.

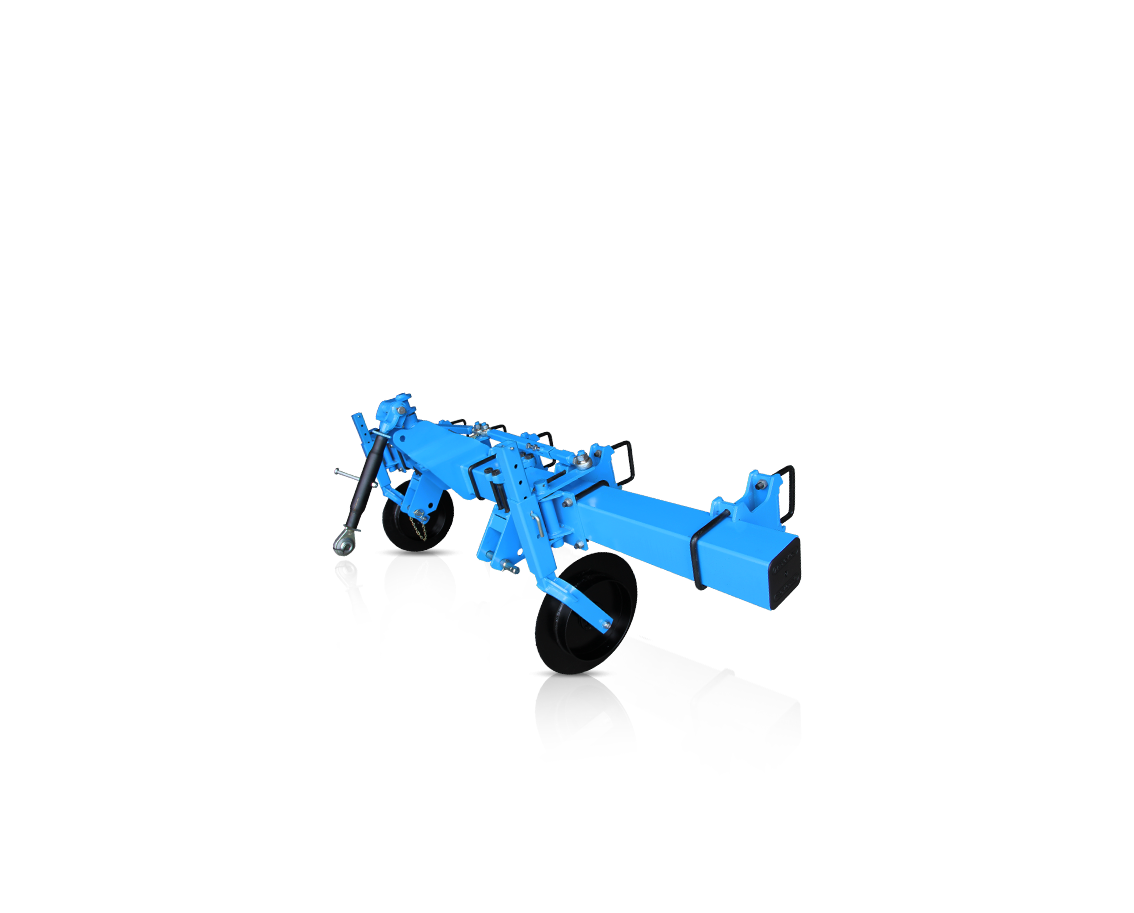

Mechanical guidance
Ideal for undulating and sloping land. Like a tag axle, the mechanical guidance system ensures that the cultivator follows the tractor perfectly for optimal cultivation on all terrain types.

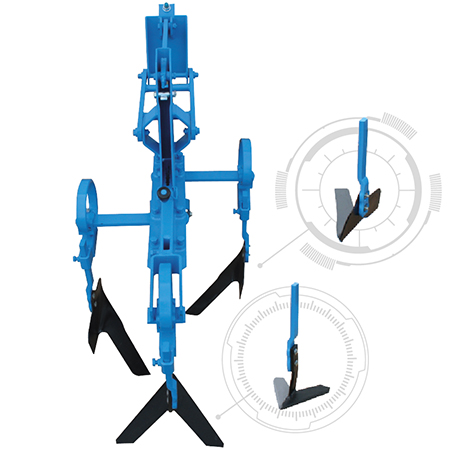

Lelièvre shovels and blades
A shovel that weeds between rows combined with a Lelièvre blade ideal for cultivating very close to the row. The Lelièvre blade is specially designed to cultivate on just one part of the tine, which is why it gets so close to the crops.
The shovel is also available with Planet blades suitable for delicate crops.

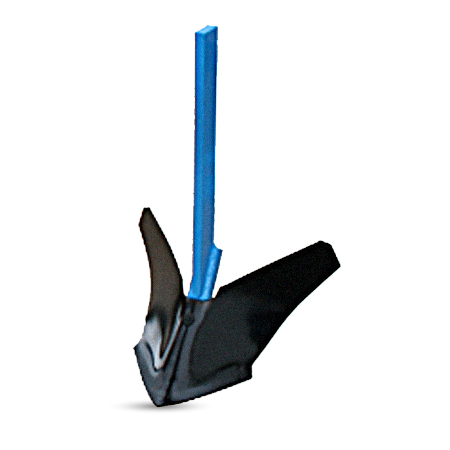

Bedder
The bedder is designed to earth up crops and cover any weeds growing on a row.

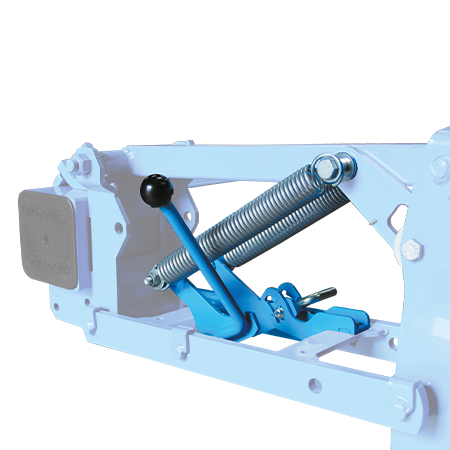

Additional pressure spring kit
The additional pressure spring helps penetrate even the hardest soils.

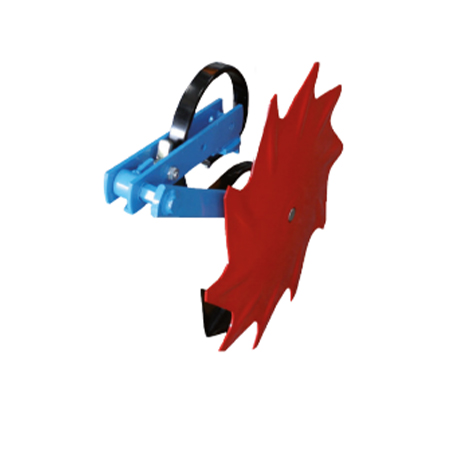

Plant protection disc
This protects the rows during cultivation. The discs ensure safe cultivation.

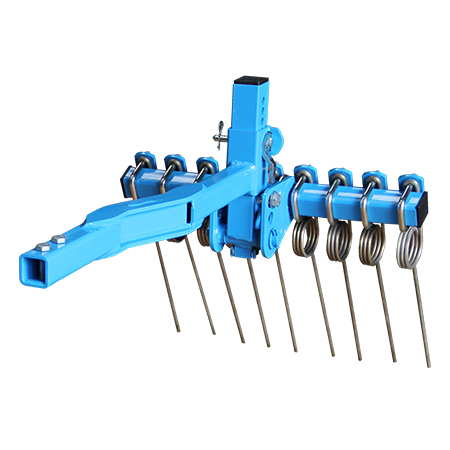

Comb
Double the cultivation efficiency: with their roots revealed, weeds dry out faster in the sun. The comb also levels the soil.

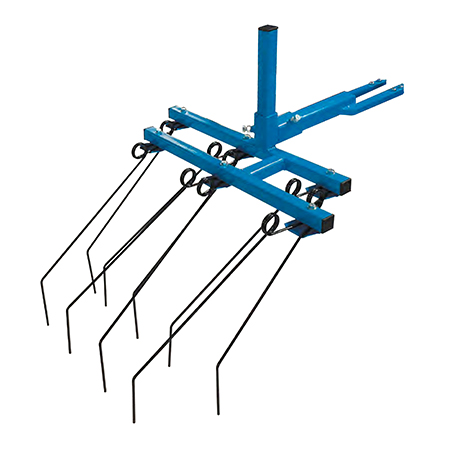

Tined weeder by ERMAS
This is ideal for stony and/or trashy soil to avoid jamming.

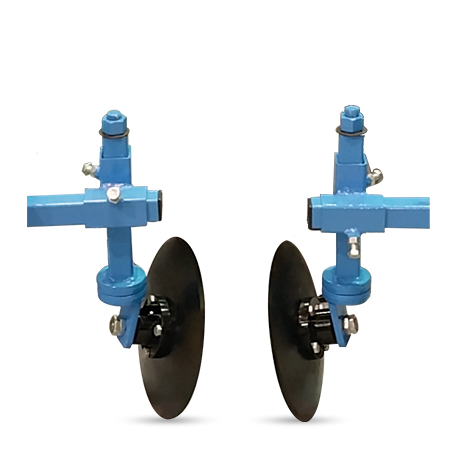

Bedding discs by ERMAS
Suffocates weeds on the row by covering them with soil.

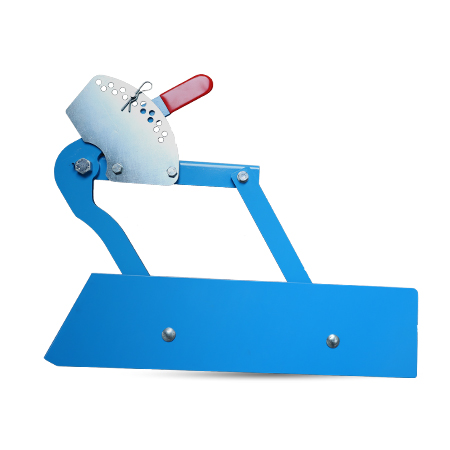

Continually adjustable plant protection plate by ERMAS
This item can be adjusted to crops' stage of growth, protecting rows during cultivation. Particularly suitable for sugarbeet and vegetables.
Finger weeders by ERMAS
These should be used when crops are sufficiently developed for weeds to be uprooted on the row.

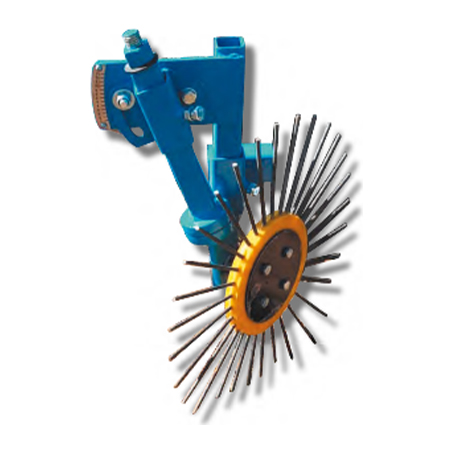

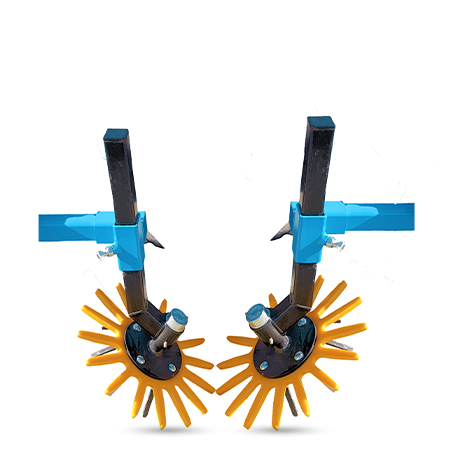

Rotative weeder by ERMAS
The rotative weeder is used at the early stages of crop development to uproot any weeds growing on the row. It also removes crusting from areas that have not been cultivated by tines.
why choose the SUPERCROP
planter?
Customizable
Choice of accessories, frames, and guidance systems to meet your requirements
Triple action
Inter-row cultivation, row protection and on-row cultivation
Durable, simple and economical
Monosem manufacturing quality combined with ease of use
why choose the SUPERCROP
planter?
Customizable
Choice of accessories, frames, and guidance systems to meet your requirements
Triple action
Inter-row cultivation, row protection and on-row cultivation
Durable, simple and economical
Monosem manufacturing quality combined with ease of use
FERTILIZING SYSTEMS
Our mounted fertilizer unit for localized application is a sturdy fertilizer system providing a perfect fit for your cultivating conditions. Fertilizer is evenly distributed using a system combining auger-based metering and agitators. Stainless-steel augers with different pitches are available, ensuring that exactly the required quantity is metered.

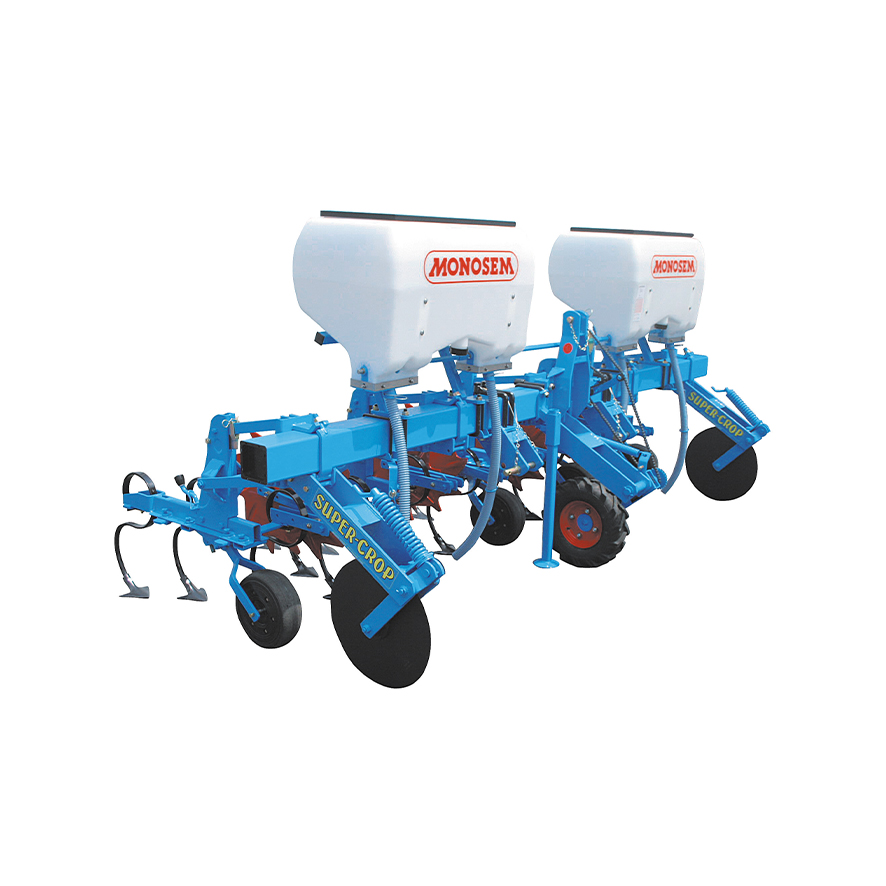

Standard mounted plastic hoppers are available in two sizes.
- 175L hopper with 2 or 3 outlets
- 270L hopper with 3 outlets
These can be mounted on rigid cultivators (4 to 12 rows) or folding cultivators (4 to 6 rows)

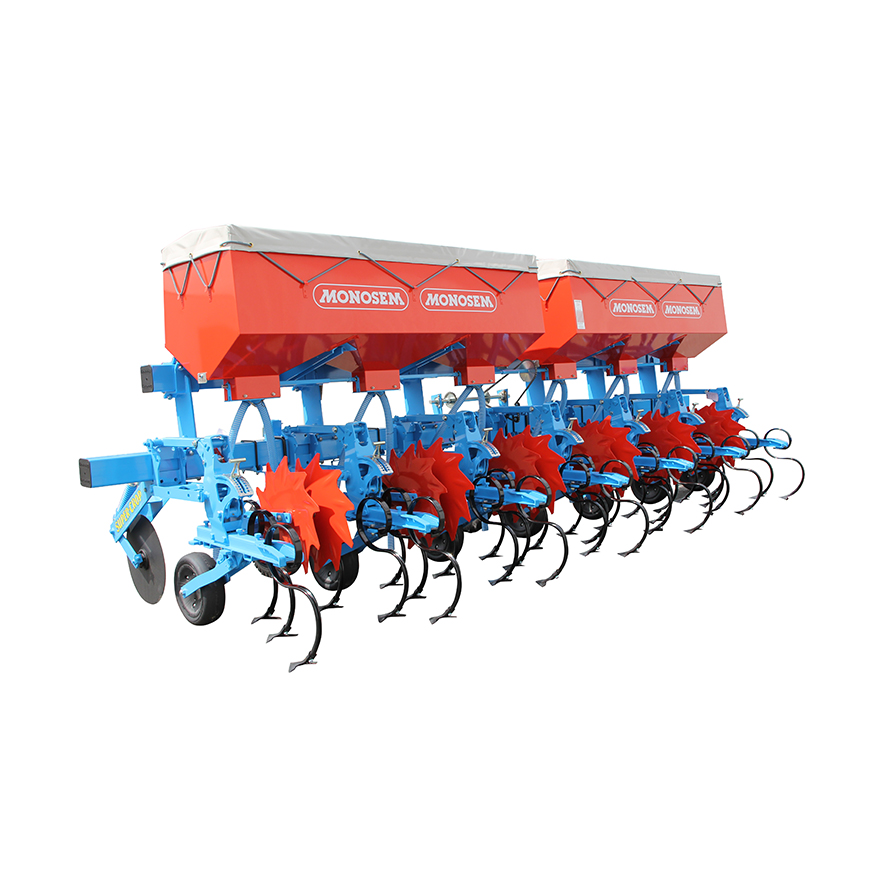

"High-capacity" sheet-metal hoppers are available for 4 to 6-row cultivators with rigid frames. The hoppers have large openings, which means they can be loaded easily using 500 or 600kg bags and offer total capacity of 700 or 1,000L.

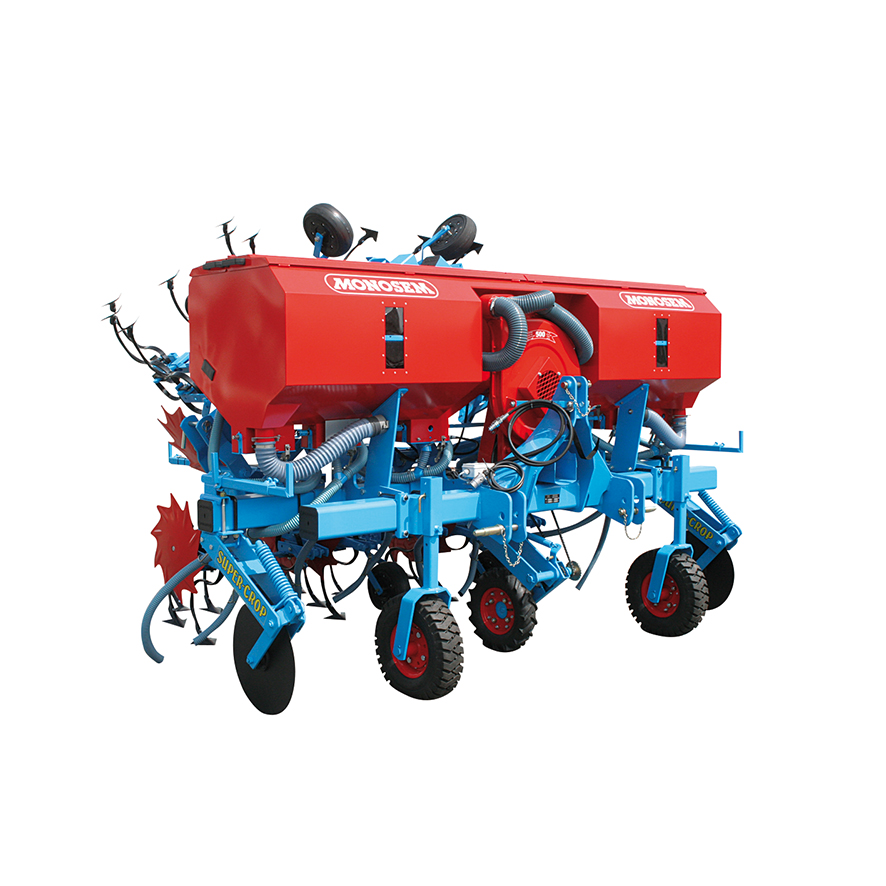

These 980L hoppers with air-driven outer rows are available for 6-row folding cultivators. They are easy to load with their V-shaped opening and simple to empty using the hatch and tube. Fertilizer levels can also be inspected visually from the tractor cab through the transparent windows.

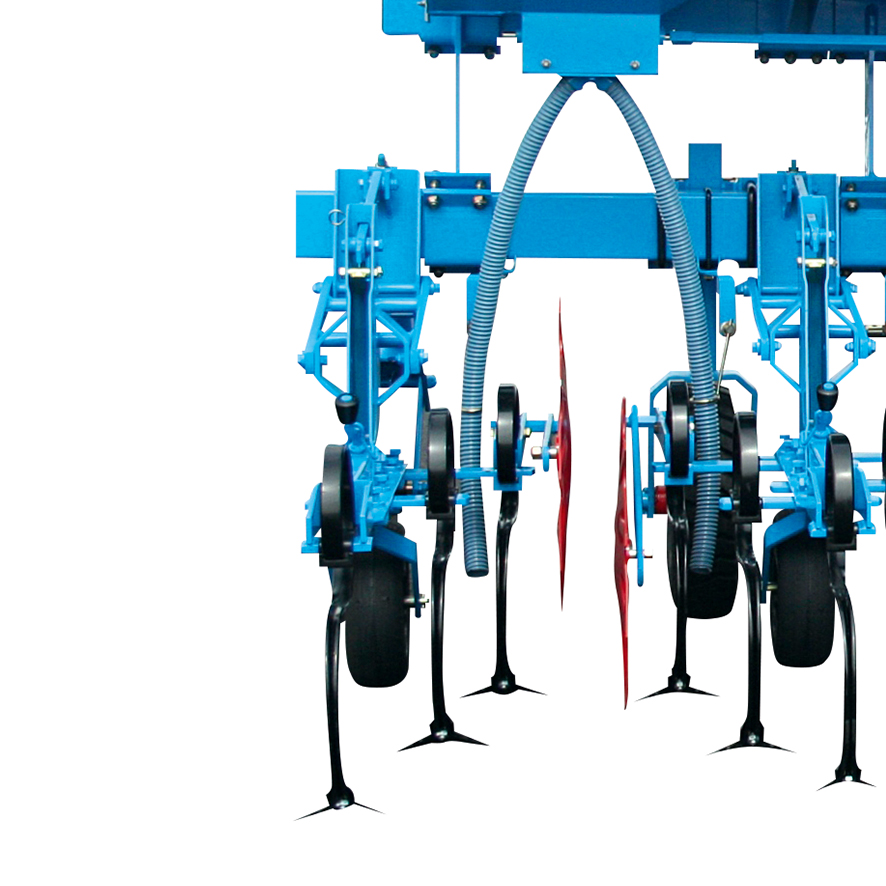

Fertilizer can be applied locally to one side of the row or on either side. It is subsequently buried by the cultivator tines.
Fertilizer is evenly distributed using a system combining auger-based metering and agitators. Stainless-steel augers with different pitches are available, ensuring that exactly the required quantity is metered.
The "standard" augers (A) are blue and meter 80 to 350kg/ha of fertilizer at inter-row spacing of 75cm.
The "high-output" augers (B) are red and meter 160 to 700kg/ha of fertilizer at inter-row spacing of 75cm.
A 12-ratio gearbox is used to adjust the quantity of fertilizer metered during planting.
- Using the chart
A WIDE RANGE OF FRAMES
Monosem supplies a full range of frames that are both durable and flexible to meet all your requirements.
Choose a frame that suits your requirements.

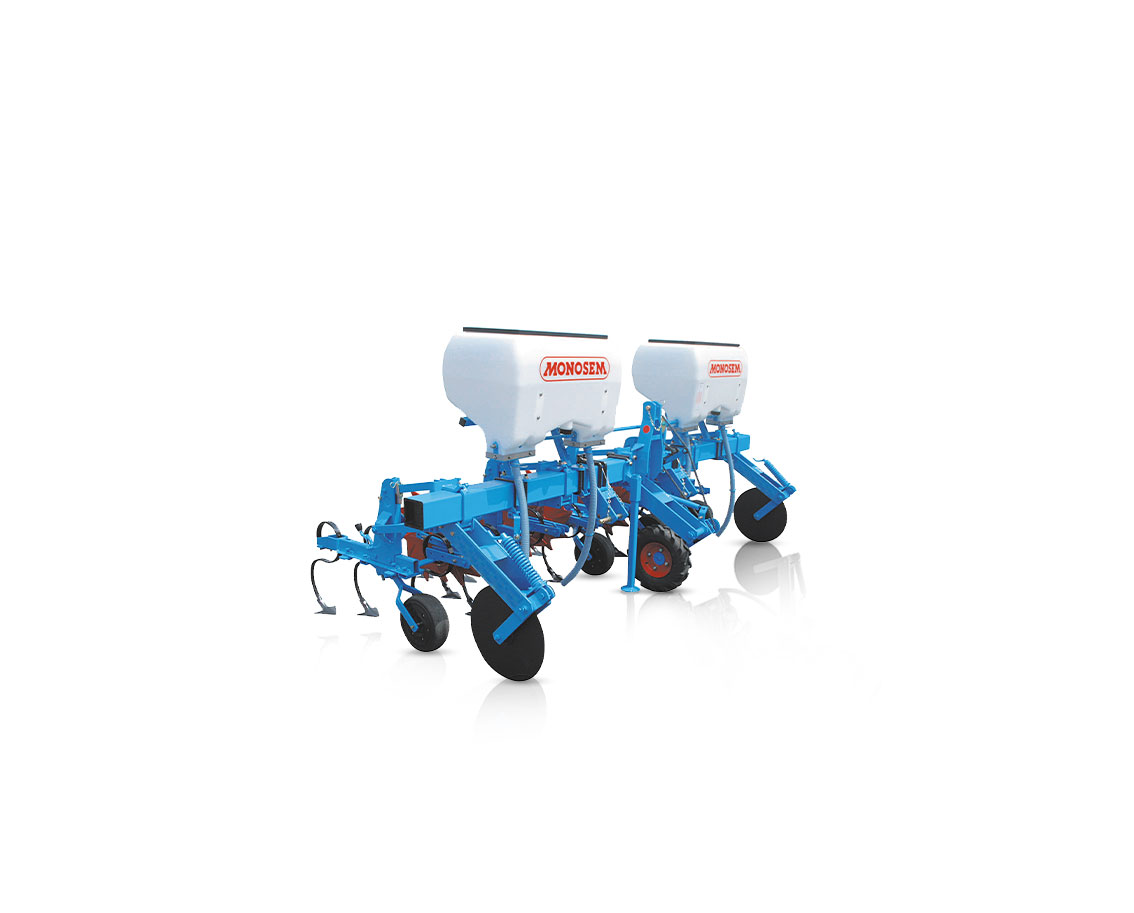

Rigid frames
Transport carriage available
Whether you require a monoblock, monobar or double-bar frame, take a look at our comprehensive range for inspiration. Our rigid frames are sure to meet all your requirements. They are economical, heavy-duty and reliable giving you peace of mind during planting.
4 - 18
rows
45 cm - 80cm
3.5 - 9.8cm
3.5 - 9.8m

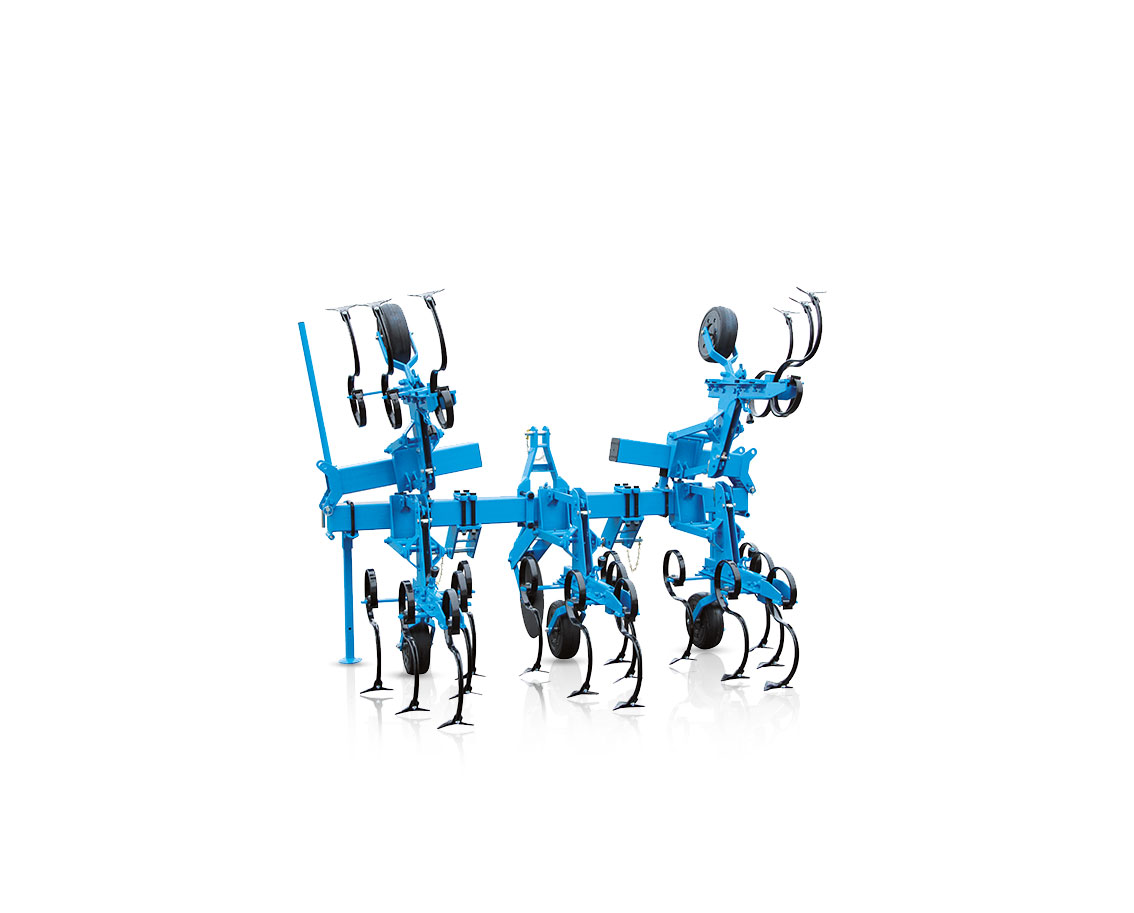

Manual folding frames
Manual folding frames facilitate road transport of cultivators with a lever enabling outer units to be folded in. This economical folding frame model gives you the option of different working widths.
4 - 7
rows
60 cm - 80cm
3,7m - 5m
2,3m - 3,65m

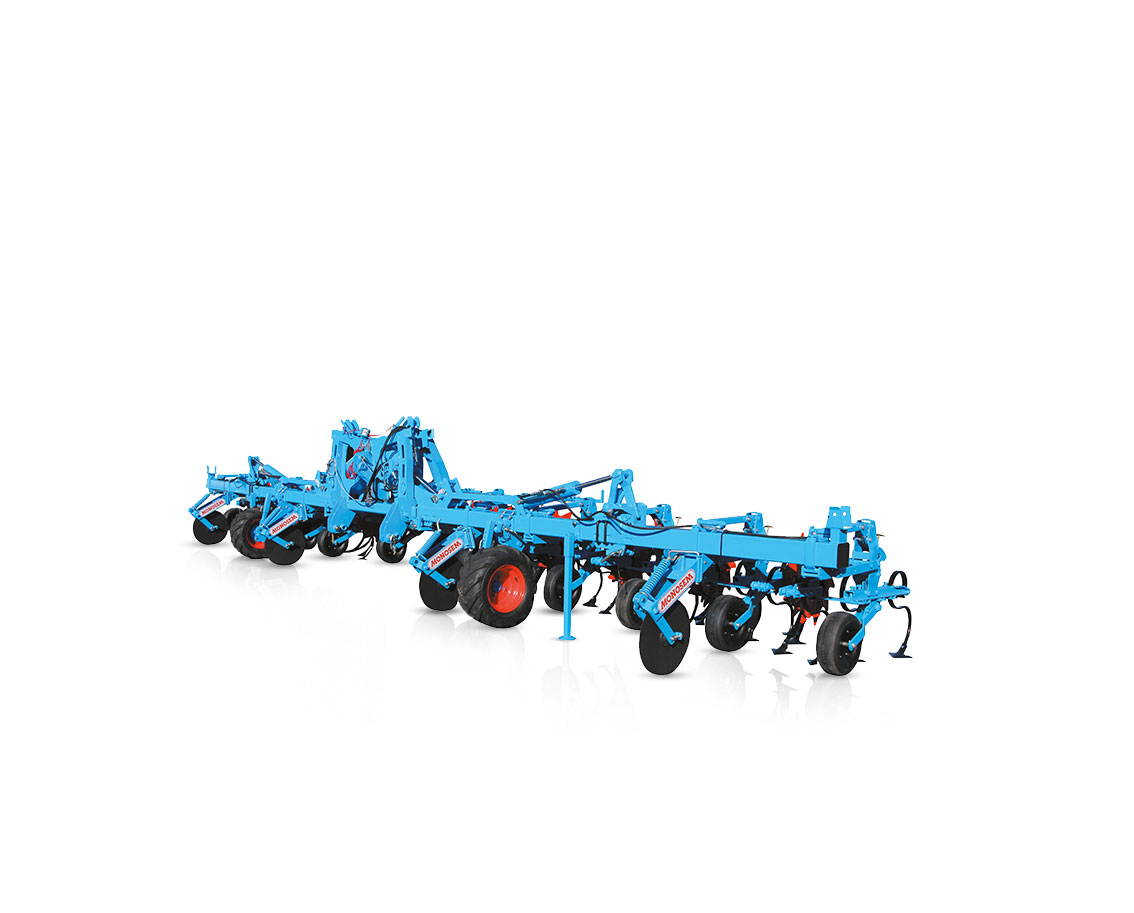

Hydraulic folding frames
These frames with a hydraulic raising system are easy to transport and enable versatile cultivation. Their raising system saves you operating time.
6 - 12
rows
45cm - 80cm
5,2m - 6,7m
3m
SUPERCROP cultivator
FEATURES
crop type
Maize
Sunflower
Beans
etc.
NUMBER OF ROWS
1 to 18 rows
INTER-ROW SPACING
25 cm to 80 cm
NUMBER OF TOOLS
1 to 5 + rear stand
crop type
Maize
Sunflower
Beans
etc.
NUMBER OF ROWS
1 to 18 rows
INTER-ROW SPACING
25 cm to 80 cm
NUMBER OF TOOLS
1 to 5 + rear stand
are you INTERESTED ?
Don't delay a second longer
Documents
Download our manuals and brochures to find out more about our Supercrop cultivator
